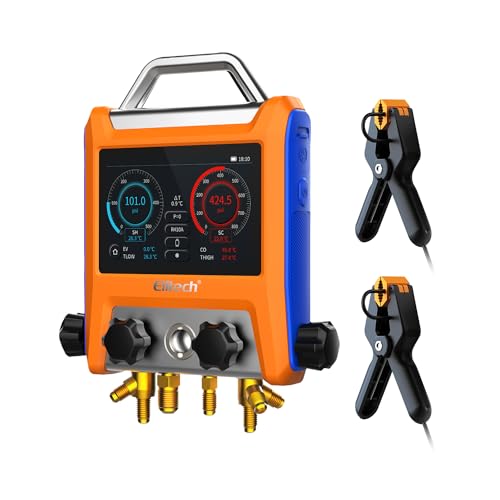

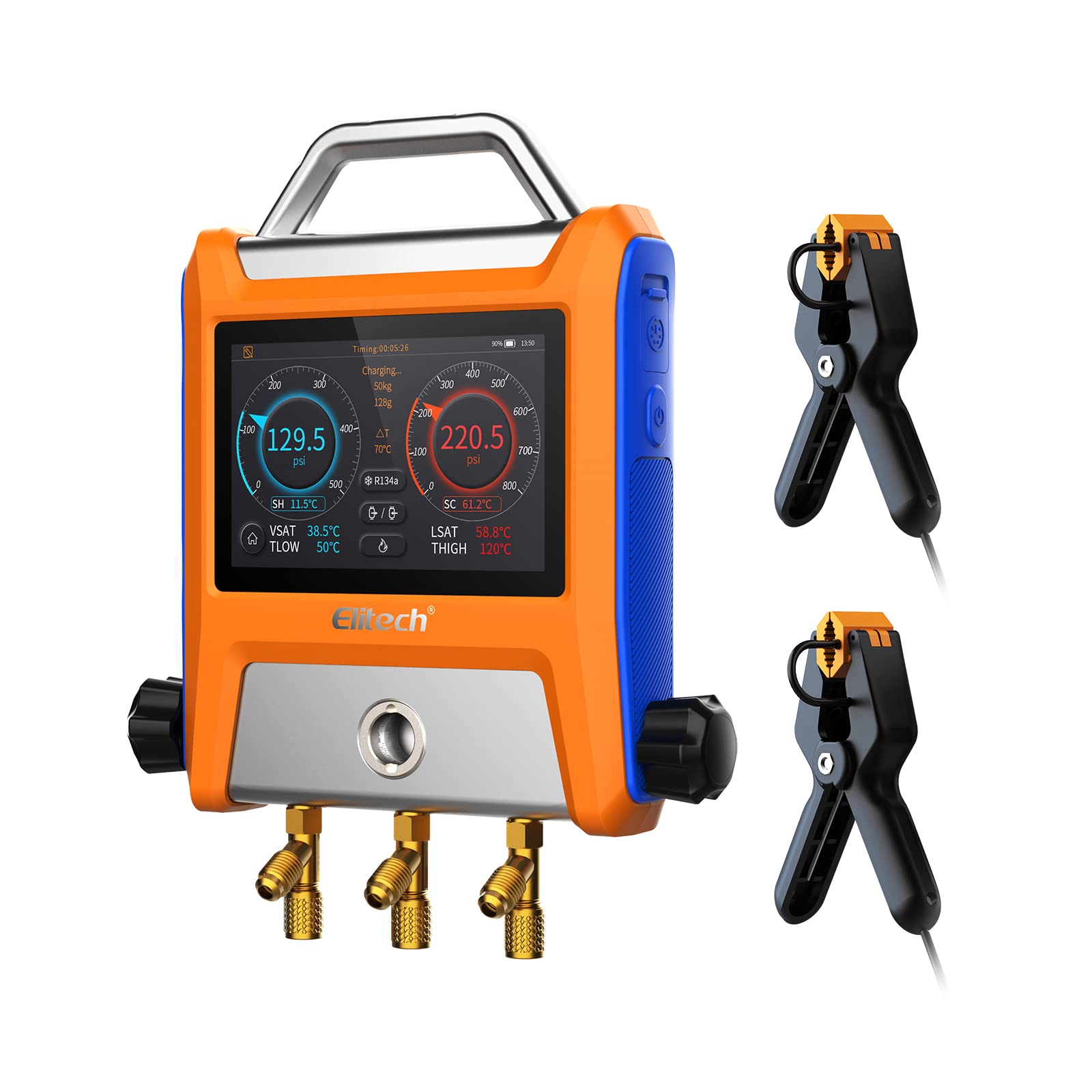

Elitech EMG-20V Smart HVAC Digital Manifold Gauge Set - 3 Port with Vacuum Sensor, Thermometer & Clamps - Professional HVAC Diagnostic Tools for AC Repair & Refrigerant Charging - Perfect for HVAC Technicians & DIY Home Maintenance

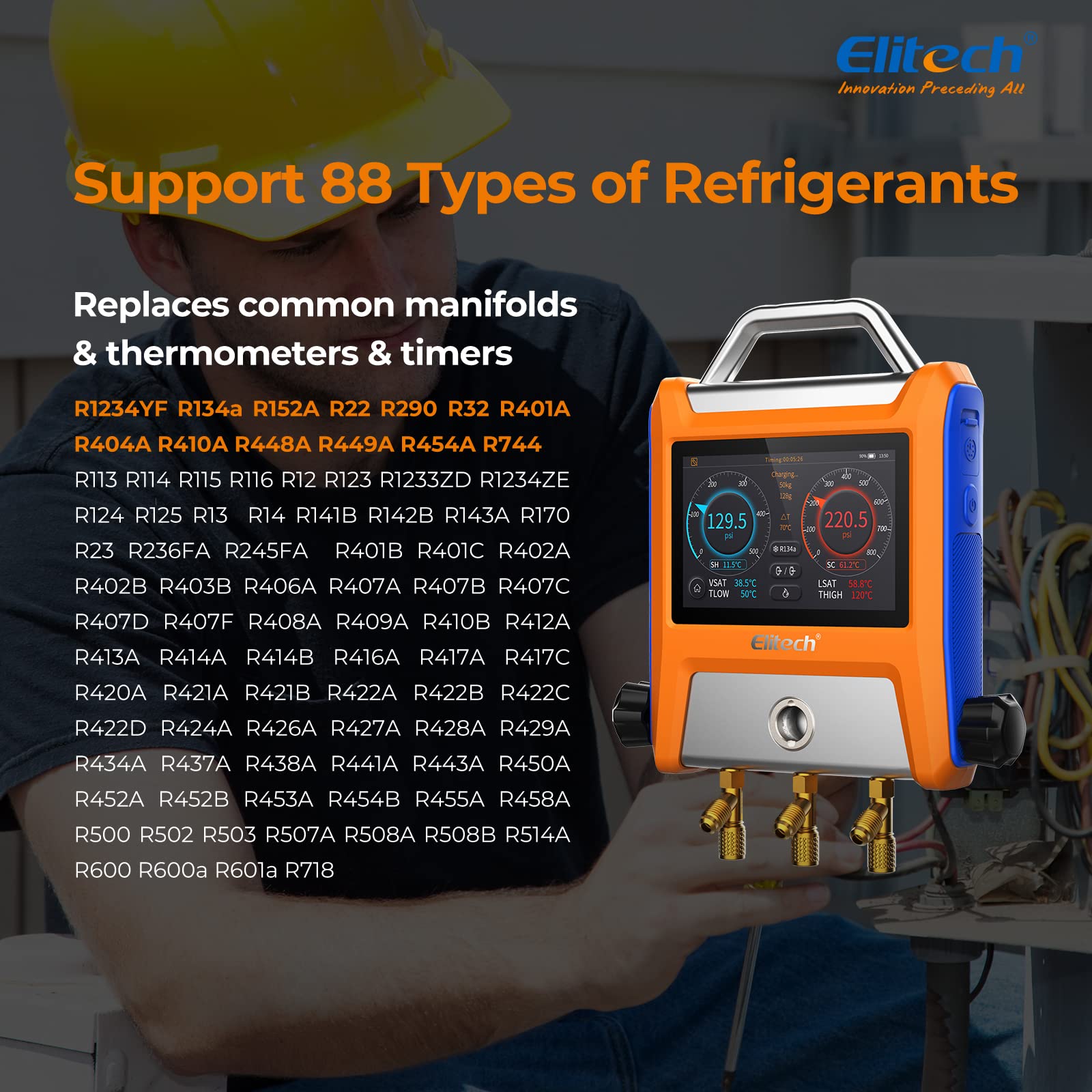

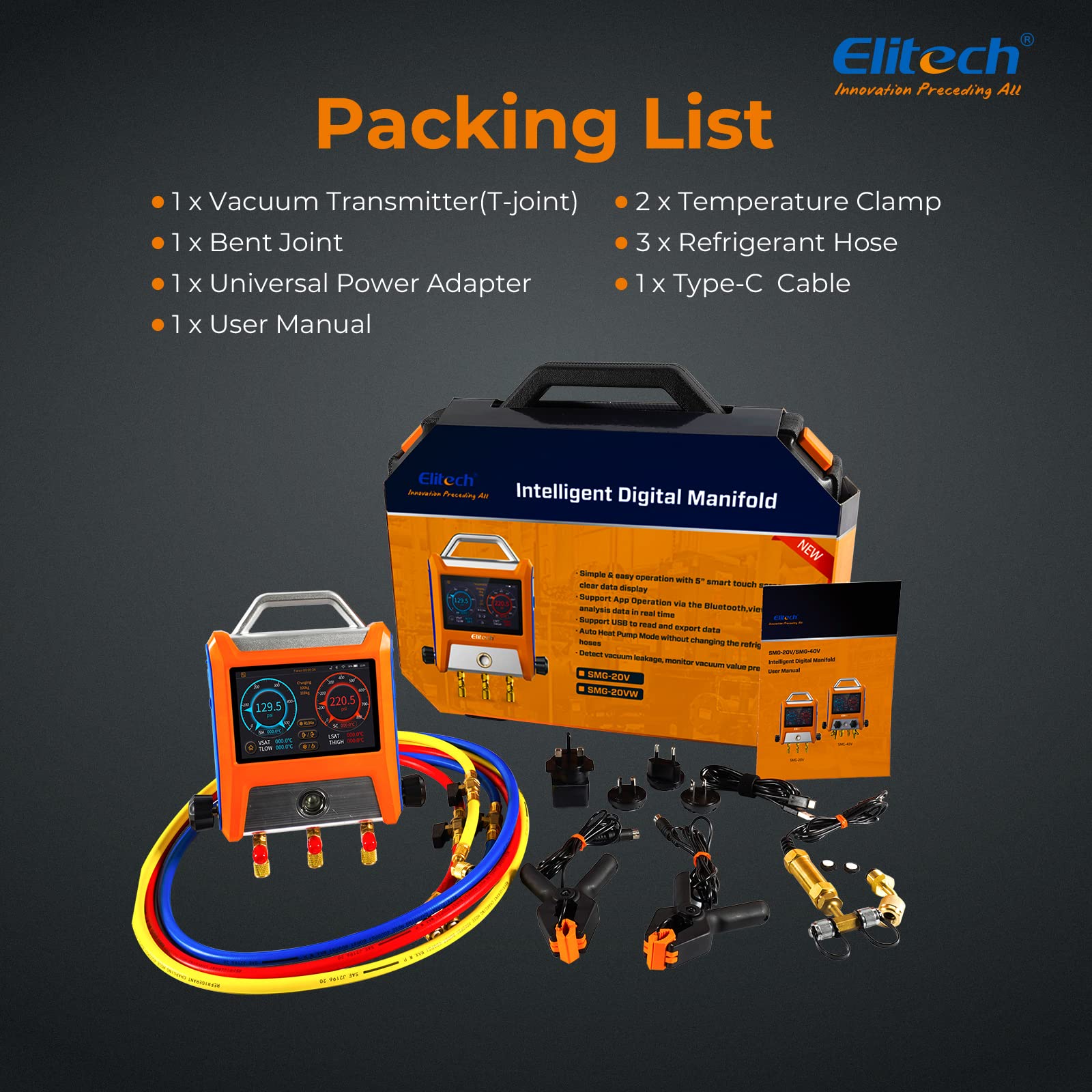

Intergraded app, Elitech Tools More Accurate Pressure-hold Testing Results Amazing Touch Screen, All-new Experiment Previous page Next page 1 Superheating/Subcooling 2 Vacuum Measurement 3 Curve Display 4 88 Kinds of Refrigerants 5 Heat Pump Mode Specifications Pressure measurement range -14.5~800 psi Unit psi, kg/cm², cmHg, inHg, bar, kPa, MPa Vacuum measurement range 1-19000 microns Unit micron, inHg, Torr, psia, mbar, mTorr, Pa, kPa Temperature measurement Range -40~302℉/-40~150℃ Auto-off 15 mins default Interface 1/4" SAE*3 Package Includes 1 x digital manifold, 1 x vacuum transmitter(T-joint), 2 x temperature clamp, 1 x bent joint, 3 x refrigerant hose, 1 x power adapter, 1 x USB-C cable 88 Refrigerant Types Available R113 R114 R115 R116 R12 R123 R1233ZD R1234ZE R1234YF R124 R125 R13 R134a R14 R141B R142B R143A R152A R170 R22 R23 R236FA R245FA R290 R32 R401A/B/C R402A R402B R403B R404A R406A R407A R407B R407C R407D R407F R408A R409A R410A R410B R412A R413A R414A R414B R416A R417A R417C R420A R421A R421B R422A R422B R422C R422D R424A R426A R427A R428A R429A R434A R437A R438A R441A R443A R448A R449A R450A R452A R452B R453A R454A R454B R455A R458A R500 R502 R503 R507A R508A R508B R514A R600 R600a R601a R718 R744 Previous page Next page 1 Global Coverage 2 Professional AI Tools 3 Advanced Production Plant 4 Certifications 5 Intergraded app Which manifold gauge is right for you EMG-20V Add to Cart EMG-40V Add to Cart LMG-10 Add to Cart LMG-10W Add to Cart Customer Reviews 4.2 out of 5 stars 611 4.2 out of 5 stars 611 4.2 out of 5 stars 611 4.2 out of 5 stars 611 Price $399.99$399.99 $550.00$550.00 $159.99$159.99 $229.99$229.99 Valves 2 4 2 2 Port 3 4 3 3 Battery capacity 20 hours 20 hours 200 hours 200 hours Rechargeable ✔ ✔ ✘ ✘ Offline Recording ✔ ✔ ✘ ✔ Touch Screen ✔ ✔ ✘ ✘ Wireless ✔ ✔ ✘ ✔

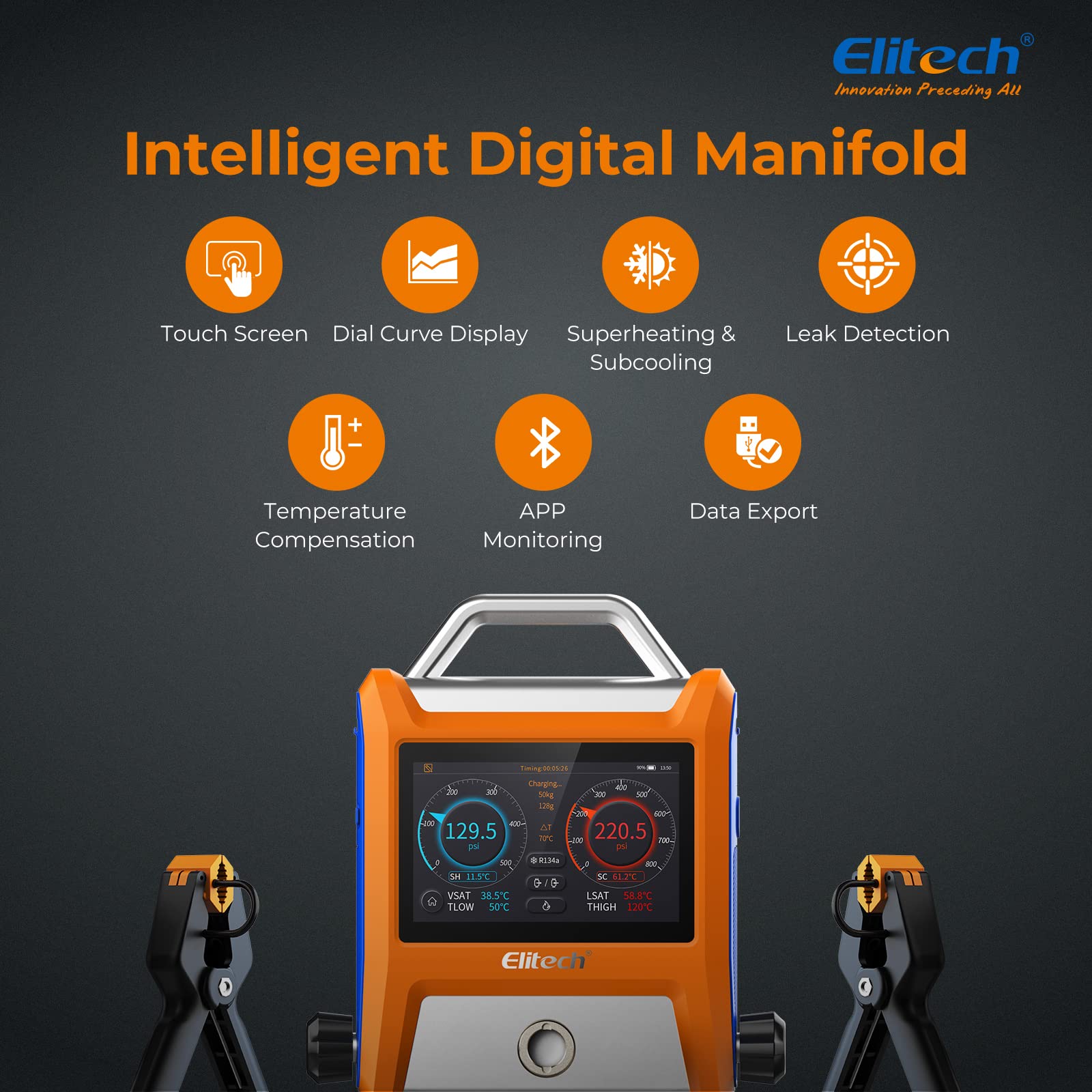

Smart Touch Screen The Elitech EMG-20V digital manifold adopts multiple HVAC tools in one unit, view changes on vacuum, pressure and temperature in clear data and graph display

Smart App Connect App by Bluetooth, data monitoring and analysis in real-time. Read and export data easily through USB. Record points 100,000 points

System Leak Testing Monitoring the process of pressure holding and vacuum leakge test precisely with Temperature Compensation

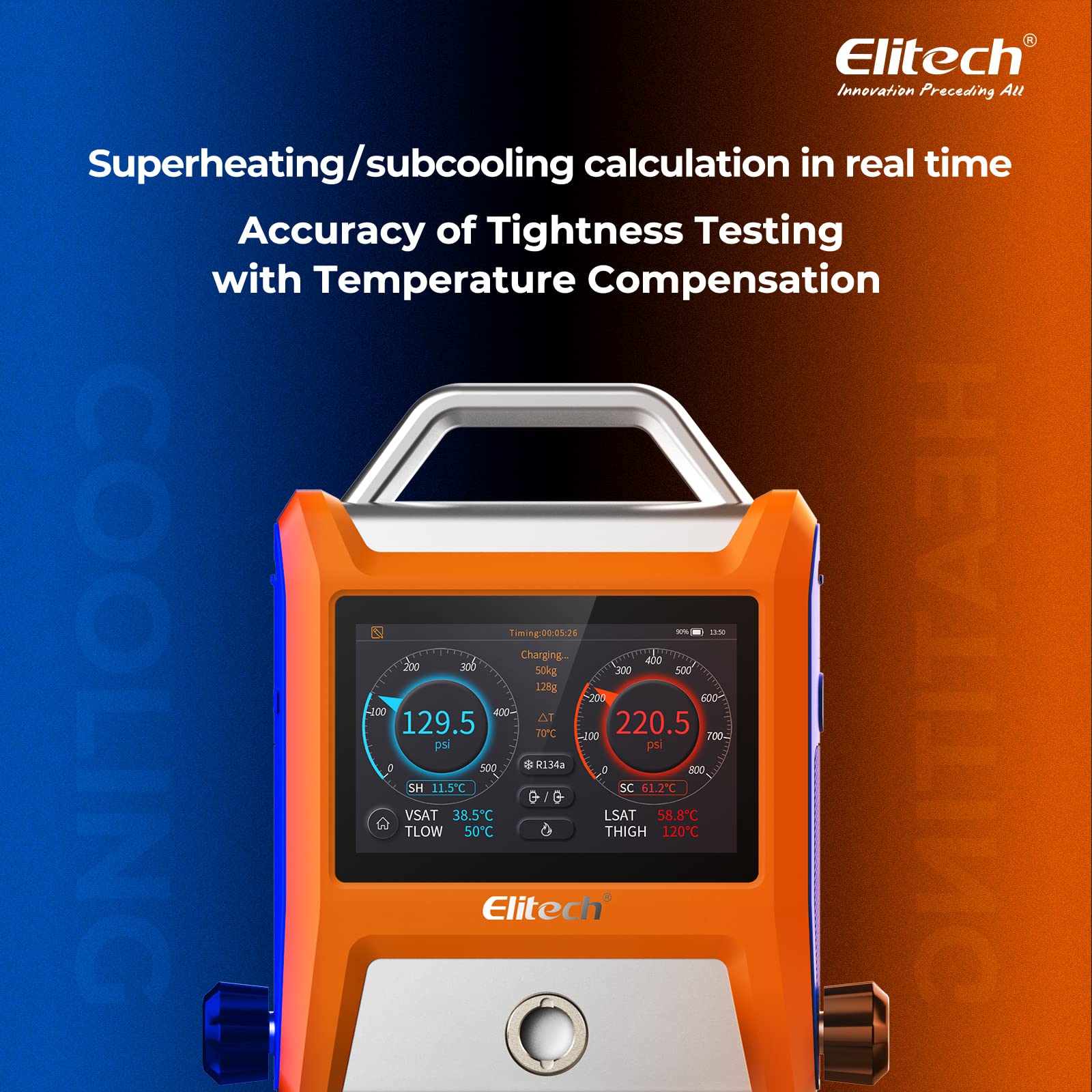

Automatic Calculation Measure the superheating and subcooling temperature of 88 refrigerants automatically

Easy to Use Auto heat pump mode without changing the refrigerants hoses, thermometer clamps and refrigerants hose, vacuum sensors are included
