HVAC Manifold Gauge Set - Digital AC Manifold Gauge with High Accuracy Vacuum Pressure & Temperature Measurement for Air Conditioning Systems | Professional HVAC Diagnostic Tool for Refrigerant Leak Detection & HVAC Maintenance

Specification: Item Type: HVAC Digital Manifold Gauge Material: ABS Pressure Test Range: 0-6000 Kpa Pressure Test Resolution: 1 Kpa Pressure Test Accuracy: +/- 0.5 %(FS)+ 5dgt Pressure Overload Limit: 10000 Kpa (10 Mpa; 100 Bar) Vacuum Test: Relative Vacuum Vacuum Test Unit: Kpa; MPa; Bar; Hg; PSI. Vacuum Test Range: -101-0 Kpa Vacuum Test Resolution: 1 Kpa Temperature Test Units: ??, ??ìH Temperature Test Range: -40-150?? (-40-302??ìH) Temperature Test Resolution: 0.1?? (-40-99.9??), 1?? (100-150??) 0.1??ìH (-40-99.9??ìH), 1??ìH (100-302??ìH) Temperature Test Accuracy: +/- 0.5?? + 2dgt +/- 0.9??ìH + 2dgt Built in 89 Refrigerants NIST: In Line with US NIST Standards Application: Universal Package List: 1 x Digital Manifold Gauge 1 x Manual

Temperature Pressure Measurement The gauge can measure dual pressure (gauge pressure) at the same time, as well as dual temperature measurement, (requires test clip, not included), with automatic multi unit pressure conversion, automatic temperature conversion ?? and ??ìH.

Multi Kinds of Refrigerants HVAC Digital Manifold Gauge built in 89 kinds of refrigerant pressure, evaporation temperature database, and can also calculate subcooling and superheat degree, which is convenient to directly read the process data.

Multifunction Refrigeration digital manifold meter also tests percentage of vacuum measurement, pressure leak measurement, leak time speed recording. Digital manifold gauge is multifunctional, accurate and easy to operate. Good replacement, direct replace for the old or broken one.

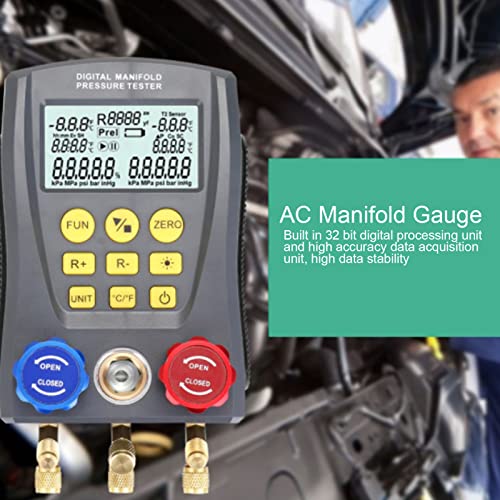

High Accuracy The instrument has a built in 32 bit digital processing unit and a high accuracy data acquisition unit, with high stability, and adopts high strength engineering plastics and flexible nonslip silicone, which is sturdy and comfortable to hold.

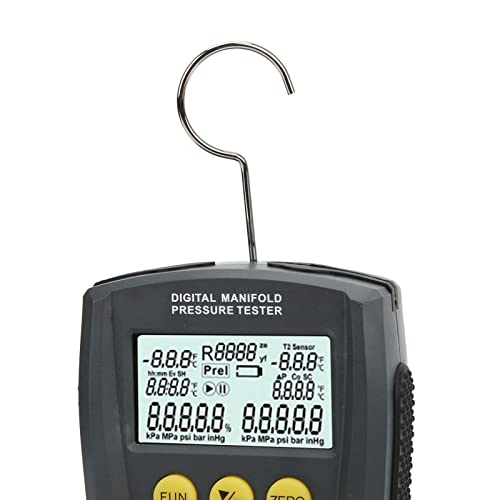

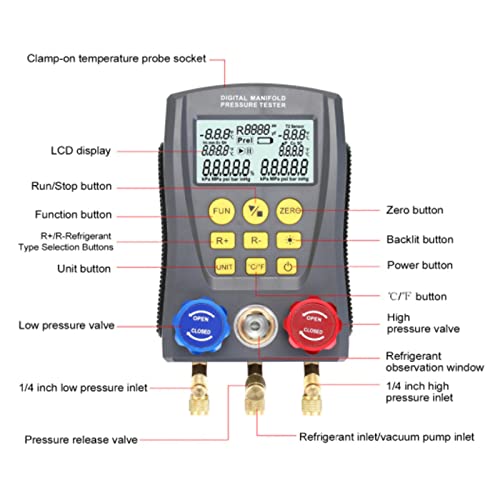

LCD Display and 1/4in Interface Refrigerantion Digital Manifold Gauge is designed with large size LCD display, LCD backlight support, the data display is clear and easy to read, light and easy to operate. Long life valve switch, 1/4in standard interface design.

Temperature Pressure Measurement The gauge can measure dual pressure (gauge pressure) at the same time, as well as dual temperature measurement, (requires test clip, not included), with automatic multi unit pressure conversion, automatic temperature conversion ?? and ??ìH.

Temperature Pressure Measurement The gauge can measure dual pressure (gauge pressure) at the same time, as well as dual temperature measurement, (requires test clip, not included), with automatic multi unit pressure conversion, automatic temperature conversion ?? and ??ìH.

Temperature Pressure Measurement The gauge can measure dual pressure (gauge pressure) at the same time, as well as dual temperature measurement, (requires test clip, not included), with automatic multi unit pressure conversion, automatic temperature conversion ?? and ??ìH.

Temperature Pressure Measurement The gauge can measure dual pressure (gauge pressure) at the same time, as well as dual temperature measurement, (requires test clip, not included), with automatic multi unit pressure conversion, automatic temperature conversion ?? and ??ìH.

Temperature Pressure Measurement The gauge can measure dual pressure (gauge pressure) at the same time, as well as dual temperature measurement, (requires test clip, not included), with automatic multi unit pressure conversion, automatic temperature conversion ?? and ??ìH.
