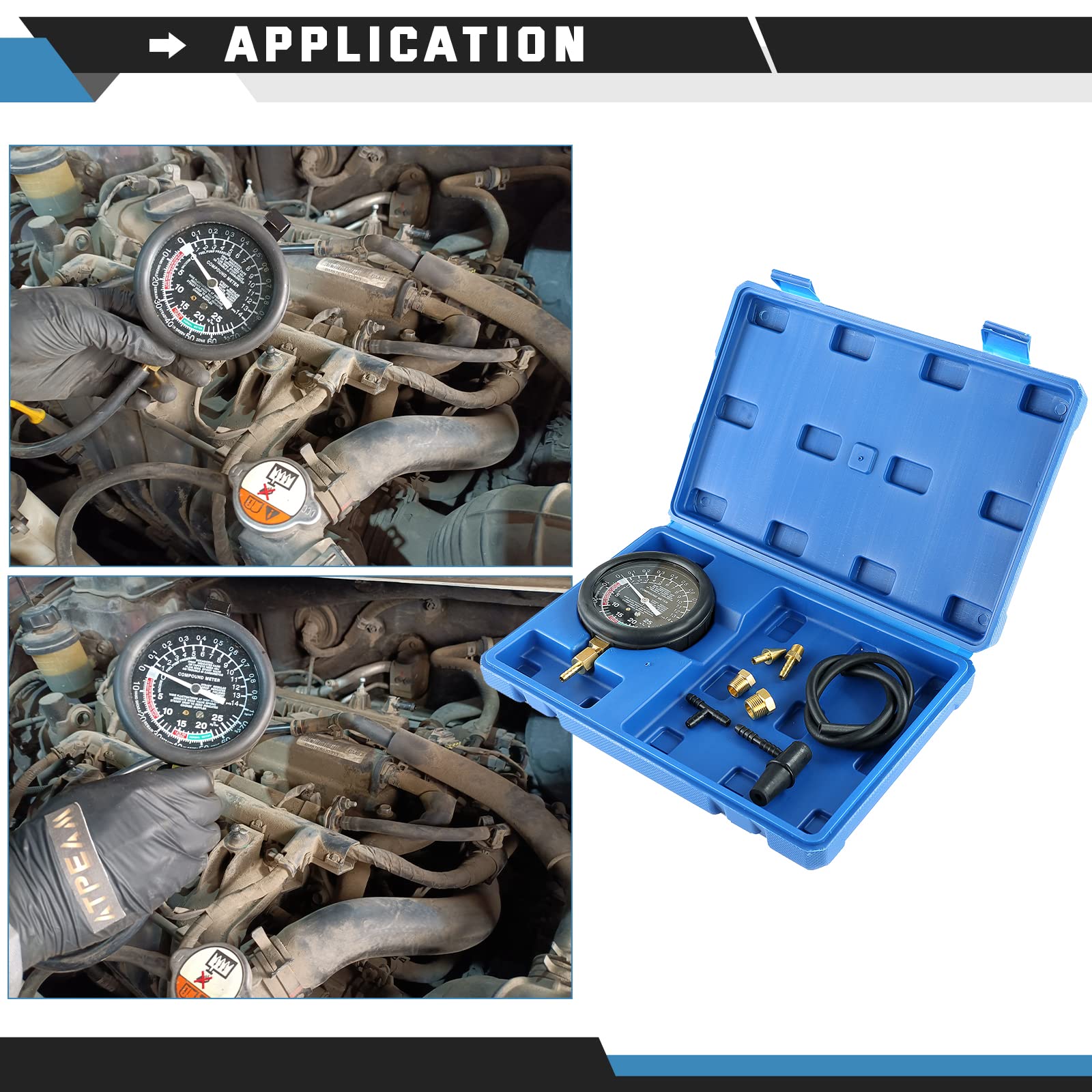

Applications This vacuum and fuel pump tester gauge kit tester will test fuel pump pressure and all vacuum operated devices, 4 tests can be performed – Fuel pump pressure, fuel pump vacuum, carburetor intake manifold, and vacuum test
Easy-to-use Instruction manual included; Includes a variety of adapters ideal for most vehicles; 4-inch (10.2cm) diameter pressure gauge with color-coded measurement scales, 1.2-inch (3cm) thickness with rubber side notches, easy to read and grip; Extra-long rubber hose and 14mm/18mm manifold adapter; Rubber hose 40 PSI (2.8 Bar) maximum working pressure

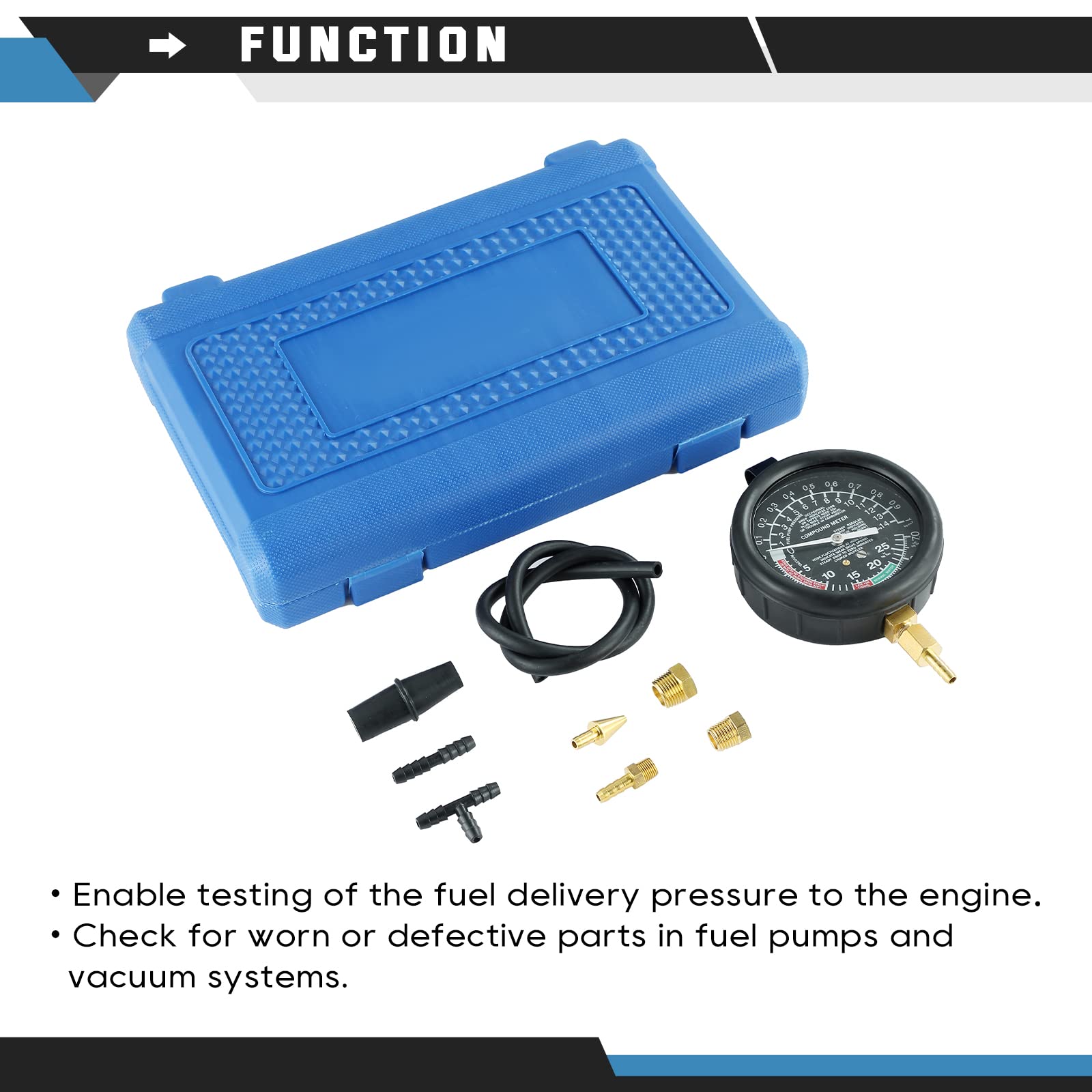

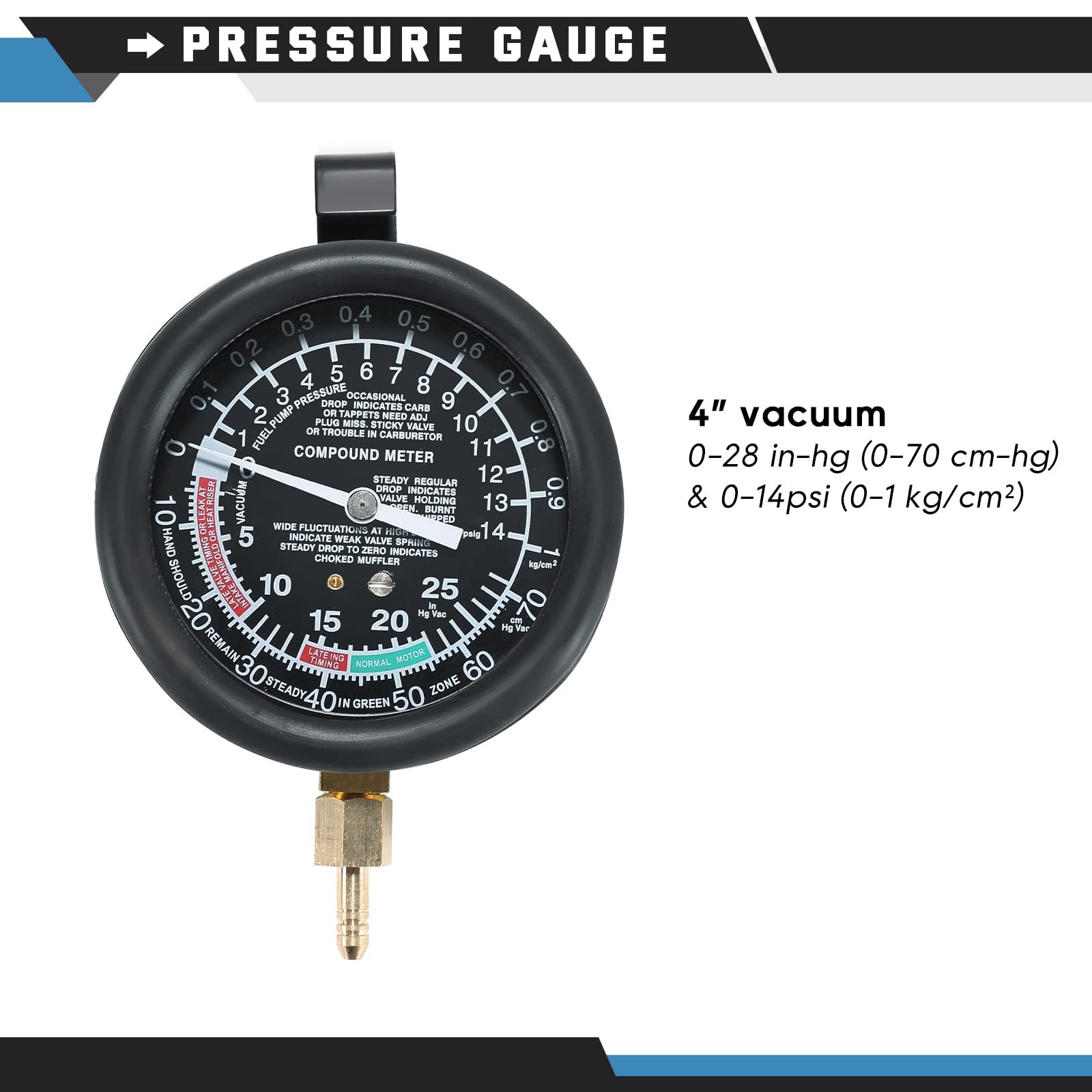

Professional Tester Kit Fuel Pump Pressure & VacuumTester Gauge Kit, Carburetor Test enables testing of the fuel delivery pressure to the engine to check for worn or defective parts; Diagnose leaking valves, incorrect timing, leaky intake manifolds, and clogged mufflers. Fuel pump operating pressures up to 10 PSI (0.7 Bar), Pressure gauge 0-28 IN-Hg (0-70 cm-HG) vacuum and 0-10 PSI (0-0.7 kg/cm²) pressure
Easy Storage Our vacuum and fuel pump tester gauge kit tools are well organized in a storage case for easy transportation, simple storage, and quick identification

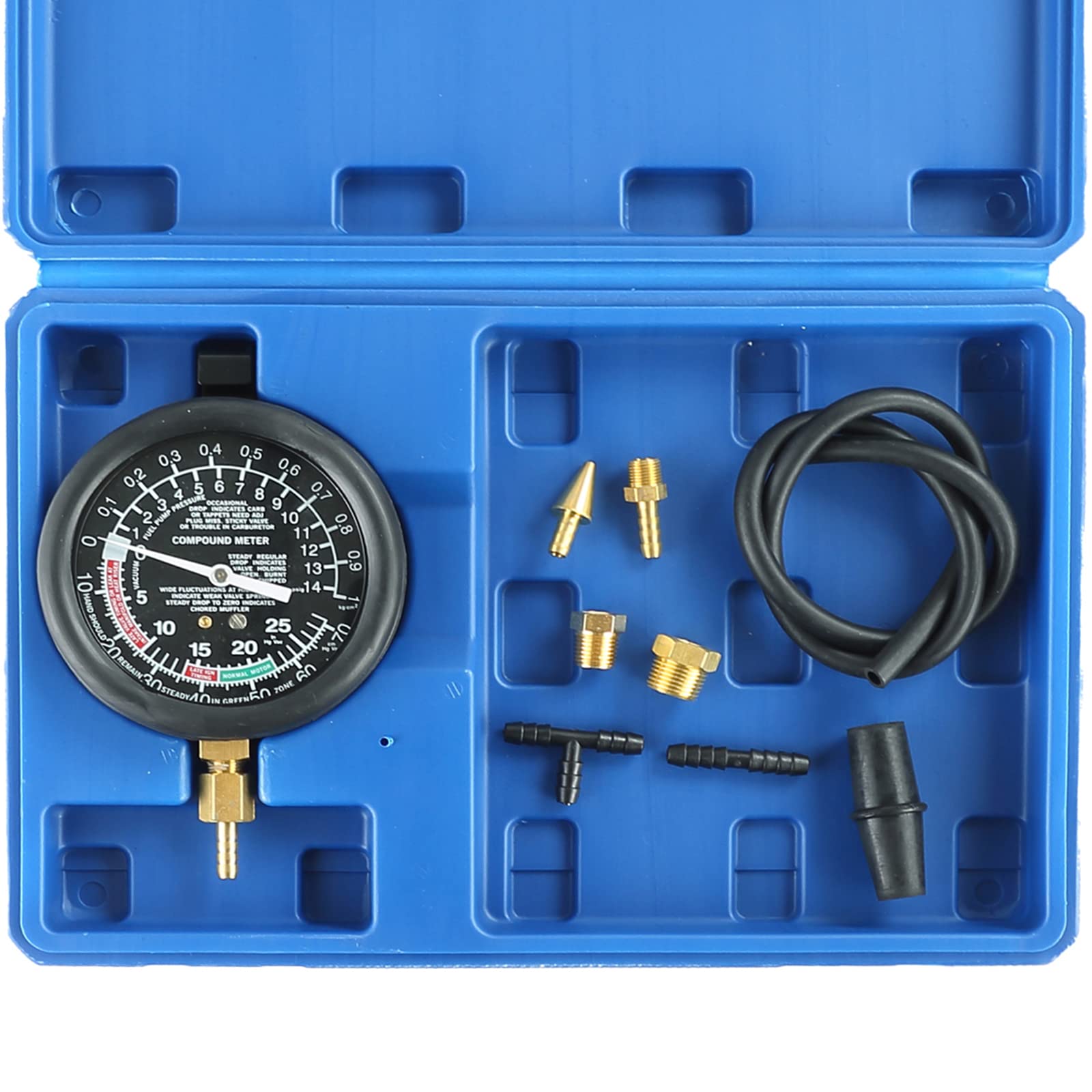

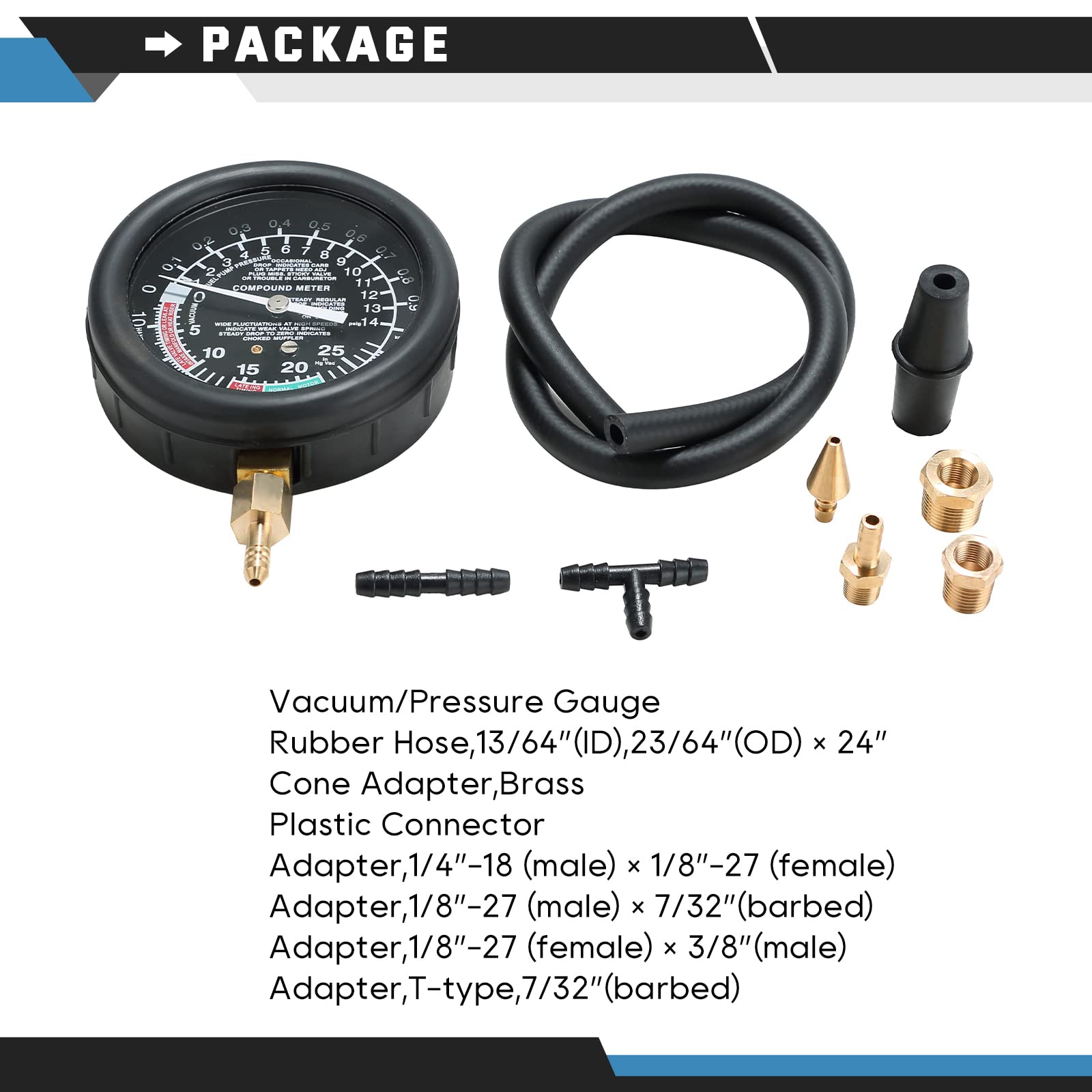

Package Includes 1x Gauge,1x 24-inch long rubber hose 40 PSI,1x brass cone adapter,2x plastic connector,1x 1/4" x18 male to 1/8" -27 female brass adapter,1x 1/8”-27 male to 7/32" barbed brass fitting adapter,1x 1/8"-27 female to 3/8" male brass adapter,1x T-type 7/32" barded fitting adapter
